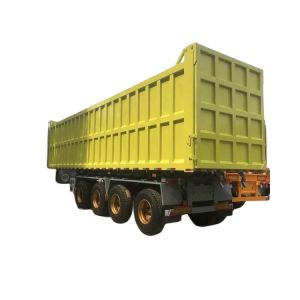

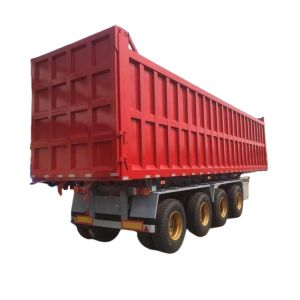

4 AXLES Tipper Semi Trailer Maximum Load 50ton

    Buy cheap 4 AXLES Tipper Semi Trailer Maximum Load 50ton from wholesalers

    Buy cheap 4 AXLES Tipper Semi Trailer Maximum Load 50ton from wholesalers
    • Buy cheap 4 AXLES Tipper Semi Trailer Maximum Load 50ton from wholesalers
    • Buy cheap 4 AXLES Tipper Semi Trailer Maximum Load 50ton from wholesalers
    • Buy cheap 4 AXLES Tipper Semi Trailer Maximum Load 50ton from wholesalers
    • Buy cheap 4 AXLES Tipper Semi Trailer Maximum Load 50ton from wholesalers
    • Buy cheap 4 AXLES Tipper Semi Trailer Maximum Load 50ton from wholesalers
    • Buy cheap 4 AXLES Tipper Semi Trailer Maximum Load 50ton from wholesalers

    4 AXLES Tipper Semi Trailer Maximum Load 50ton

    Ask Lasest Price
    Brand Name : SDHIM
    Certification : ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000pcs/year
    Delivery Time : Full Payment 7-15 Work Days
    • Product Details
    • Company Profile

    4 AXLES Tipper Semi Trailer Maximum Load 50ton

    4 AXLES Tipper Semi Trailer Maximum Load 50ton


    Product Advantages


    Chassis adopts special chassis produced by various chassis manufacturers, with advanced technology and reliable performance. The advanced software optimizes the design of the products to meet the individual needs of customers. The process tooling of flow operation ensures the excellent quality of products.


    Product Parameter


    Weight
    Payload50T
    Specification
    Overall size(L*W*H)13000*2550*1500mm
    Box size(L*W*H)

    12800*2450*1500mm

    Volume:47m3

    Chassis
    Main beam

    Type: straight type;

    Height: 480mm;

    Riser: 8mm;

    Upper wing: 10mm

    Lower wing: 12mm

    Side beam14# thick wall channel steel
    Bottom plateHigh-strength flat plate 2.0 mm
    Through beamHigh-strength bending parts + 8*10 square tube
    Box board13 open the door(high-strength vertical corrugated)
    Twist locknone
    ColumnIntegral welding
    King pin90#
    Running system
    Axle

    Capacity:13T

    QTY: 4 units

    With widened brake pads

    Tyre

    Type: Triangle 1200R22.5

    QTY: 16 units

    Rim9.0*16units
    Brake ValveThree bridge synchronization
    Hydraulic cylinder6+1-130#
    Suspension60#Thickened and reinforced
    Leaf spring

    Type:Standard

    Qty: 10pcs

    Brake system

    Brake bottle: Aluminum cylinder

    Brake air chamber: 6 in total

    Cargo tipping directiondouble left/right
    Outrigger form28T
    Tool box

    1 unit;

    1200mm,Right

    Ladder1 (cab side)
    Spare wheel bracket1 unit,Right
    Other configurationWith rope tensioner, with canvas rack,with rear bumper

    Product Photos




    Quality 4 AXLES Tipper Semi Trailer Maximum Load 50ton for sale
